IEEE 802.3af Power over Ethernet splitter
The Allied Telesis AT-6102G-xx PoE midspan spliiter converts non-PoE devices to using Power over Ethernet; there is no need for an additional power supply unit since the PoE splitter feeds the device with power received through the PoE connection.

The AT-6102G works with all IEEE 802.3af PoE-compliant Power Sourcing Equipment (PSE) and allows remote powering of any equipment, absorbing up to 15W.

The AT-6102G also has a DIP switch to select the voltage and match the requirements of devices like IP cameras, VoIP phones and more.

IEEE 802.3af/at Power over Ethernet injectors
Allied Telesis Power over Ethernet injectors feed power to PoE-Powered Devices (PD), such as access points, IP cameras and VoIP phones.

The Allied Telesis AT-6101G is compliant to IEEE 802.3af standard (PoE) and source up to 15.4W.

The Allied Telesis AT-6101GP and Allied Telesis AT-6112GP are compliant to the IEEE 802.3af/at standards (PoE/PoE+) and source up to 30W per port.

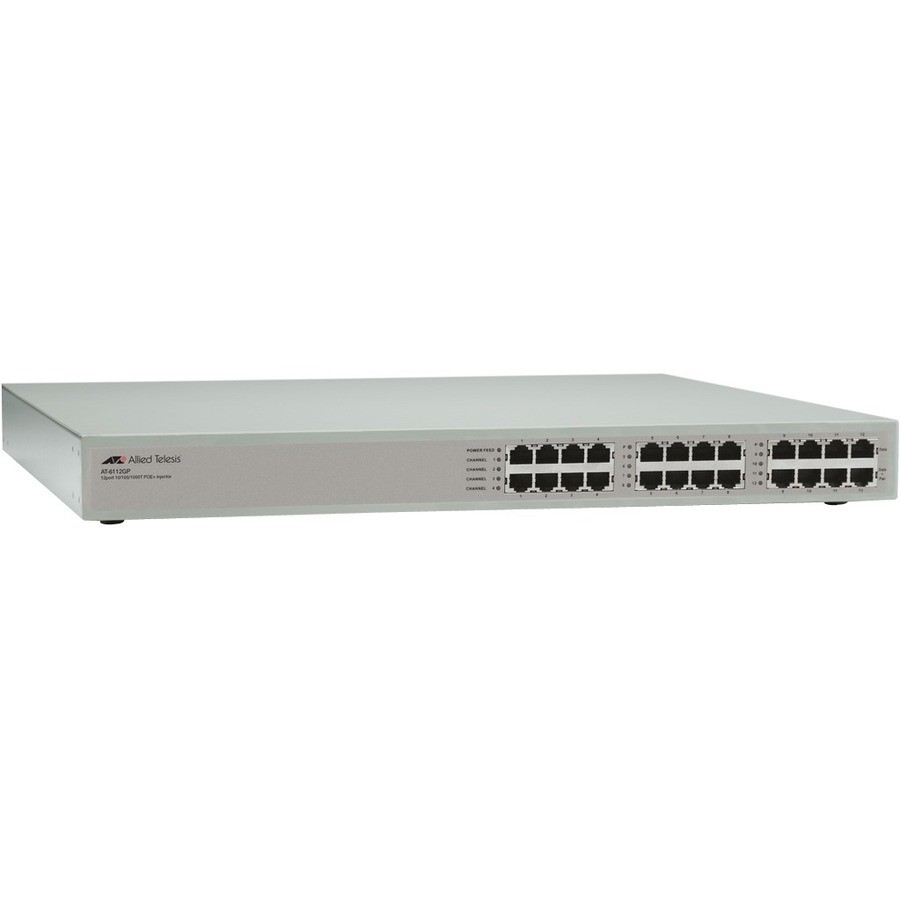

The AT-6112GP has an internal power supply unit and a 19" form factor for easy deployment to small and large organizations.

Main applications
Power over Ethernet (PoE) technology is a system to safely transfer electrical power, along with data, to remote devices over standard UTP data cables in an Ethernet network (Cat3/Cat5/Cat5e/Cat6).

PoE is an active technology which determines and negotiates whether the equipment needs power and in what amount; power will not be supplied in case of non-PoE equipment, so that prevents their damage.

The PoE/PoE+ midspan injector is typically installed close to the LAN switch and sources power to terminal equipment using the Ethernet network.

The PoE splitter avoids having to replace existing devices with PoE-enabled ones that simply substitute the original power supply.

The Allied Telesis 6100 Series helps protect network investments because it provides PoE technology and eliminates the need to draw up power to the terminal equipment.

This entire product set performs Gigabit Ethernet bandwidth for fast data transfer with low latency.
