- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.co.uk
- Brand Name
- Allied Telesis
- Marketing Information
Extend Networks

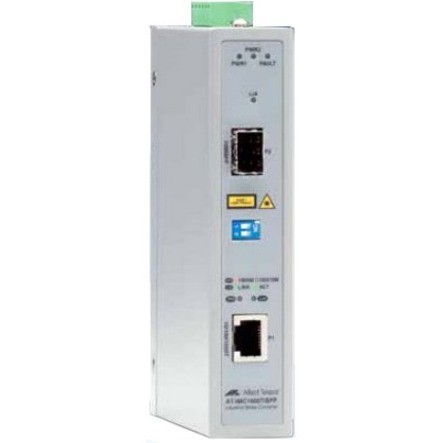

The AT-IMC1000T/SFP is designed to extend the distance of a network by converting any Ethernet data between twisted-pair cabling to multi-mode or single-mode fiber-optic cabling Gigabit Ethernet (IEEE 802.3z). The AT-IMC1000T/SFP operates at industrial temperature (-40°C to 75°C) and features a 1000X SFP fiber port and a 10/100/1000T twisted-pair port. The fiber-optic port features a modular SFP bay for any kind of MSA-compliant pluggable SFP model working at 1Gbps. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters (328 feet).
- Product Type
- Transceiver/Media Converter
- Interfaces/Ports
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Distance Supported
- 100 m
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 1
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Physical Characteristics
- Form Factor
- Rail-mountable
- Wall Mountable
- Height
- 108 mm
- Width
- 35.8 mm
- Depth
- 95 mm
- Weight (Approximate)
- 500 g
