- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- Schneider Electric
- Product Line

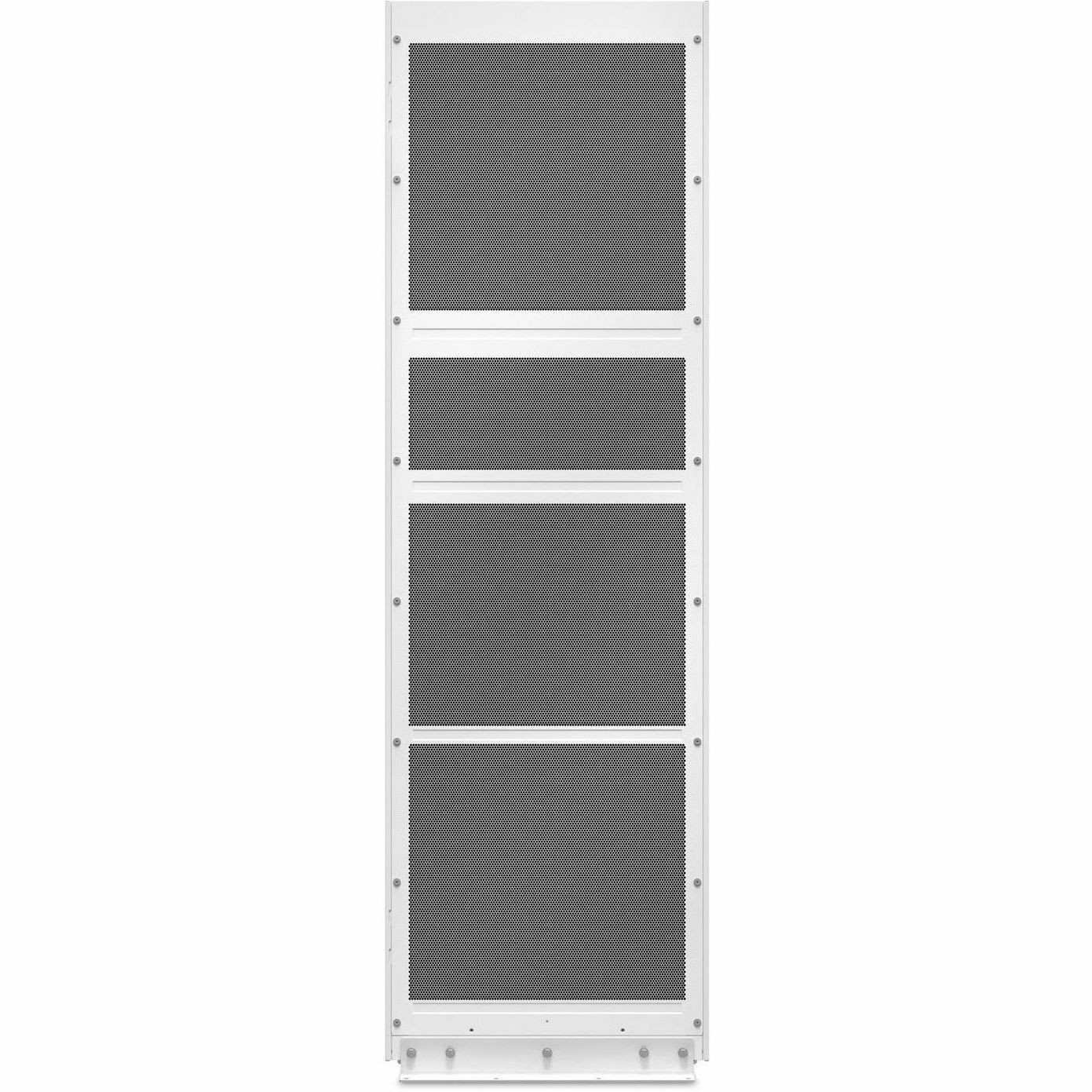

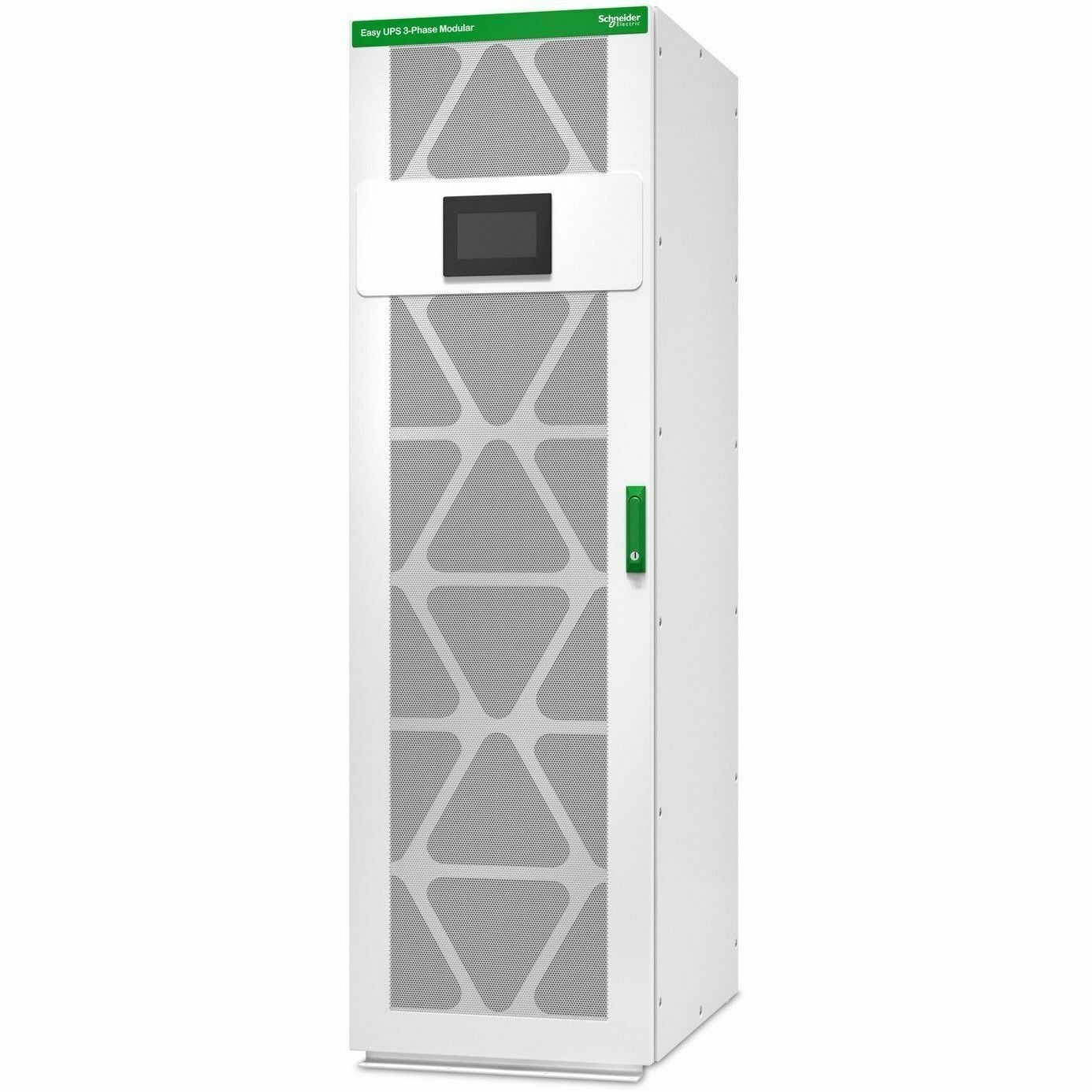

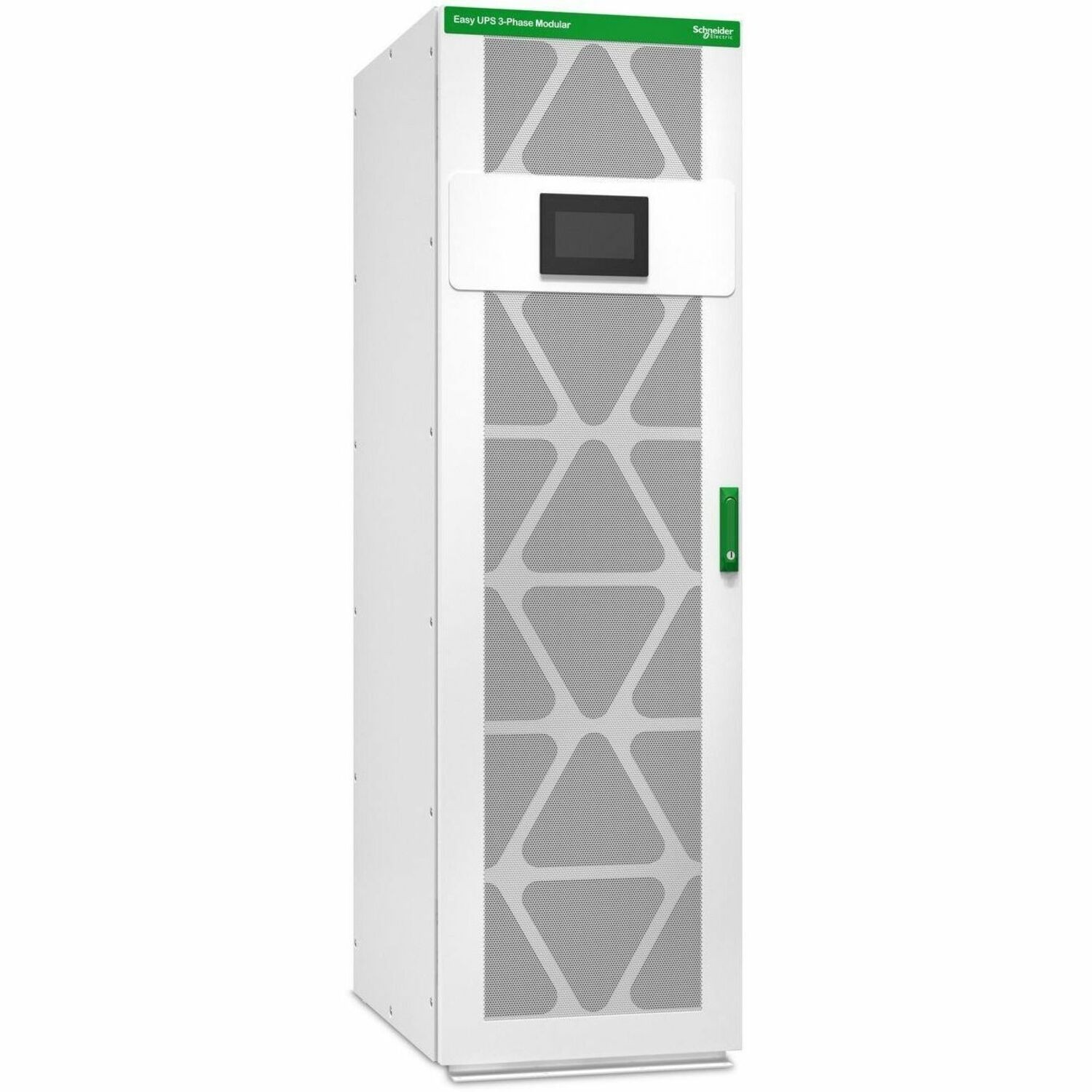

- Easy UPS
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 12 Month
- Technical Information
- Phase
- Three Phase
- Power Description
- Load Capacity (VA)
- 50 kVA
- Load Capacity (Watt)
- 50 kW
- Input Voltage
- 400 V AC
- 380 V AC
- 415 V AC
- Output Voltage
- 400 V AC
- 380 V AC
- 415 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Input Current
- 95 A
- Management
- Network Management
- Network-M3 Card
- Interfaces/Ports
- USB
- Yes
- Battery Information
- DC System Voltage
- 576 V DC
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Lead Acid
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -25°C - 55°C
- Maximum Operating Elevation
- 3 km
- Sound Emission
- 74 dB
- Thermal Dissipation
- 8414 BTU/h
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Form Factor
- Modular
- Height
- 1991 mm
- Width
- 600 mm
- Depth
- 850 mm
- Weight (Approximate)
- 251 kg
- Miscellaneous
- Package Contents
- Easy UPS 50kVA Modular UPS
- User Manual
- Dust Filter
- Network Management Card
- Start-up Service
- Certifications & Standards
- IEC 62040-1 safety
- IEC 62040-2
- IEC 62040-3
- IEC 61641
- IP20
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
