- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- Schneider Electric
- Product Line
- Online
- Marketing Information

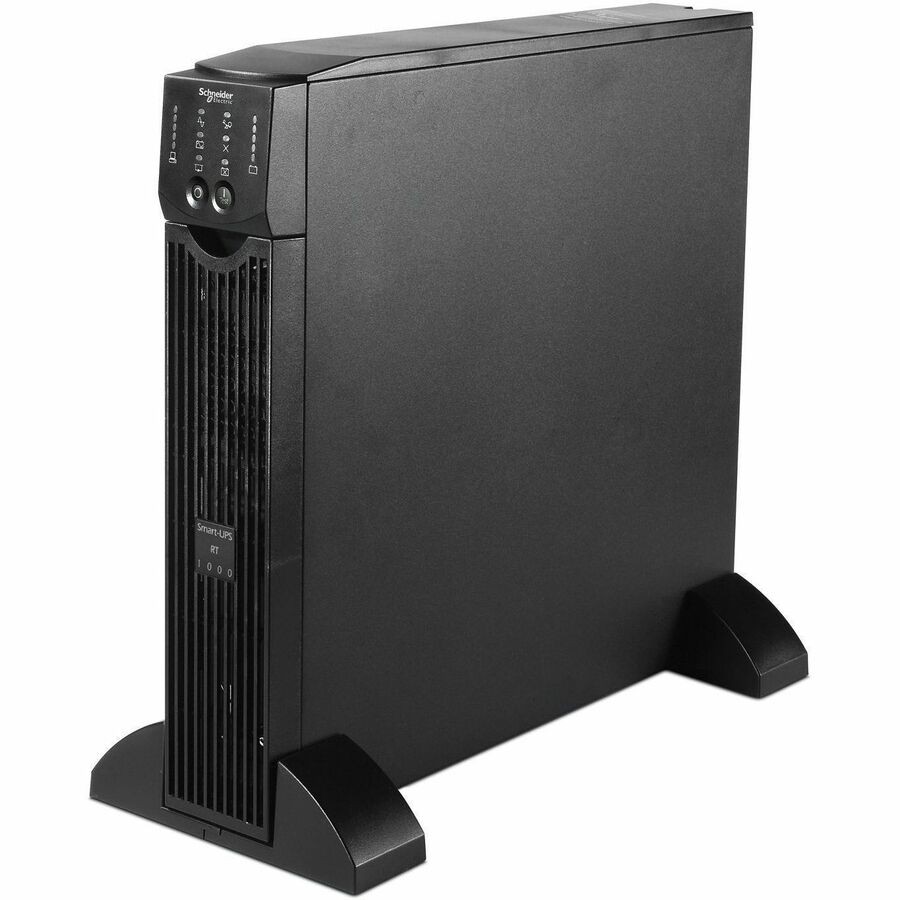

It is a double conversion online UPS with a power rating of 1000VA and output power capacity of 700 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as 6 IEC 60320 C13 and 2 IEC jumpers. The UPS features double conversion online technology and sine wave output.
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 24 Month
- Technical Information
- Receptacle Type
- IEC 60320 C13
- IEC Jumper
- Receptacle Detail

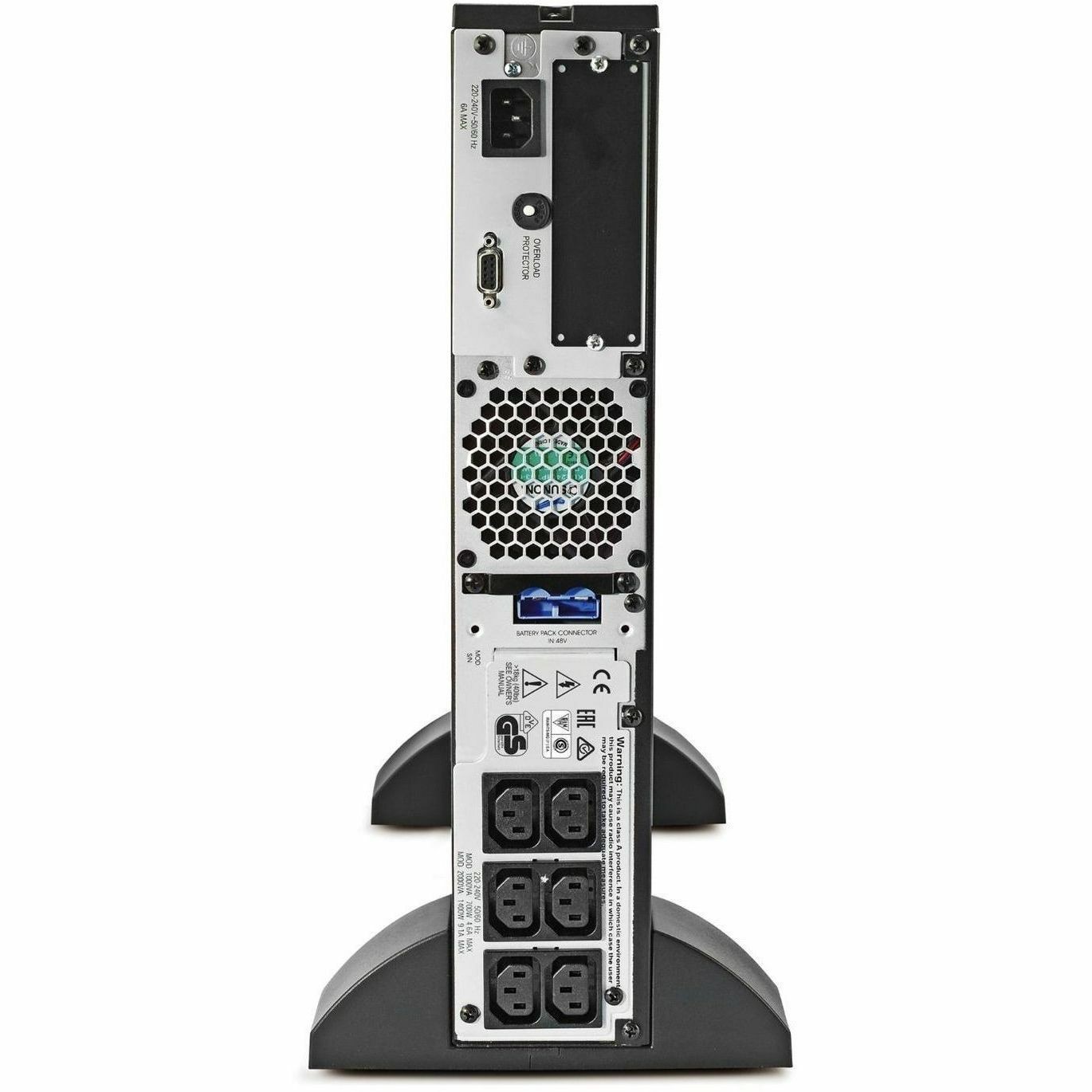

- 6 x IEC 60320 C13
- 2 x IEC Jumper
- Features
- Built-in Bypass Switch
- Power Description
- Load Capacity (VA)
- 1 kVA
- Load Capacity (Watt)
- 700 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 160 V AC - 280 V AC
- Output Voltage
- 230 V AC
- 220 V AC
- 240 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 420 J
- User Selectable Output
220V, 230V and 240V user selectable output.
- Management
- Network Management
- SmartSlot
- Alarm
- On Battery
- Low Battery
- Overload
- Interfaces/Ports
- Serial Port
- Yes
- USB
- No
- Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 13.82 Minute
- Backup/Run Time (Half Load)
- 31 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 3 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 50°C
- Maximum Operating Elevation
- 3.05 km
- Maximum Storage Elevation
- 15.24 km
- Sound Emission (A-Weighted)
- 50 dB(A)
- Thermal Dissipation
- 324 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 432 mm
- Width
- 85 mm
- Depth
- 483 mm
- Form Factor
- Tower
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 23 kg
- Miscellaneous
- Package Contents
- Online 1000VA Tower UPS
- Software CD
- RS-232 Cable for Smart UPS Signaling
- Manual
- Certifications & Standards
- C-Tick
- CE
- GOST
- VDE
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
- IP20
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
